TV LED concave lense
Product Description
Technical Data:
1. LED chip size: 3.0mm x 3.0mm x 0.6T
2. LED chip input voltage: 2.8-3.6V
3. LED chip current: 500mA
4. LED power consumption (Type): 1.6W
5. Brightness: >= 140 Lm
6. Color coordinates: X= 0.0625-0.2717, Y= 0.2450-0.2650
We recommend a minimum distance of 17mm from the end of plastic lens to the screen within the panel to achieve a uniform surface light.

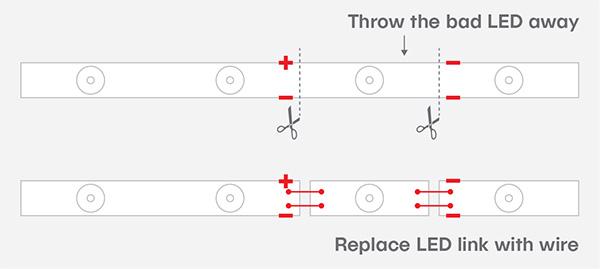

How to replace: STEP 1: Find the bad LED in the strip. Cut the strip on either side of the bad lens, and remove it.
STEP 2: Link the new LED lens to the LED strip with short wires.

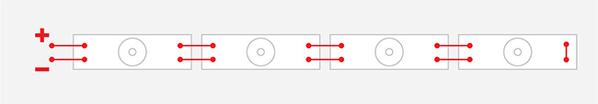

You can also connect the LEDs in series:
1. LED chip size: 3.0mm x 3.0mm x 0.6T
2. LED chip input voltage: 2.8-3.6V
3. LED chip current: 500mA
4. LED power consumption (Type): 1.6W
5. Brightness: >= 140 Lm
6. Color coordinates: X= 0.0625-0.2717, Y= 0.2450-0.2650
We recommend a minimum distance of 17mm from the end of plastic lens to the screen within the panel to achieve a uniform surface light.
How to replace: STEP 1: Find the bad LED in the strip. Cut the strip on either side of the bad lens, and remove it.
STEP 2: Link the new LED lens to the LED strip with short wires.
You can also connect the LEDs in series:
